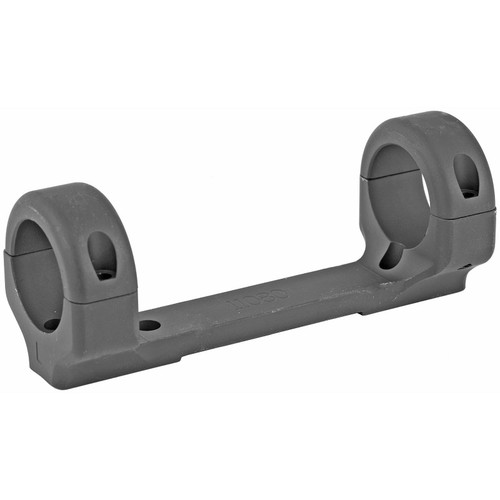

Precision machined from a solid block of top-grade billet aluminum. Custom made to fit each type of firearm and align perfectly with your rifle’s receiver. No moving parts between the firearm and the scope. 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security. Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight.
- Mount fits both left and right hand firearms.
- Base screws are 6-48 X 1/4" long. Ring screws are 6-40 X 5/8" long. Both screws use a 7/64" Allen wrench.
- Outside to outside of rings is 4.29". Standard rings are .63" wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86", 2.57", .50". Height of mounts from top of receiver to centerline of scope tube is - low .94", medium 1.06", and high 1.19".
